| FNM HPE 80 |
»» |
 |
|
|
| |
|
 |
| ::
Engine model |

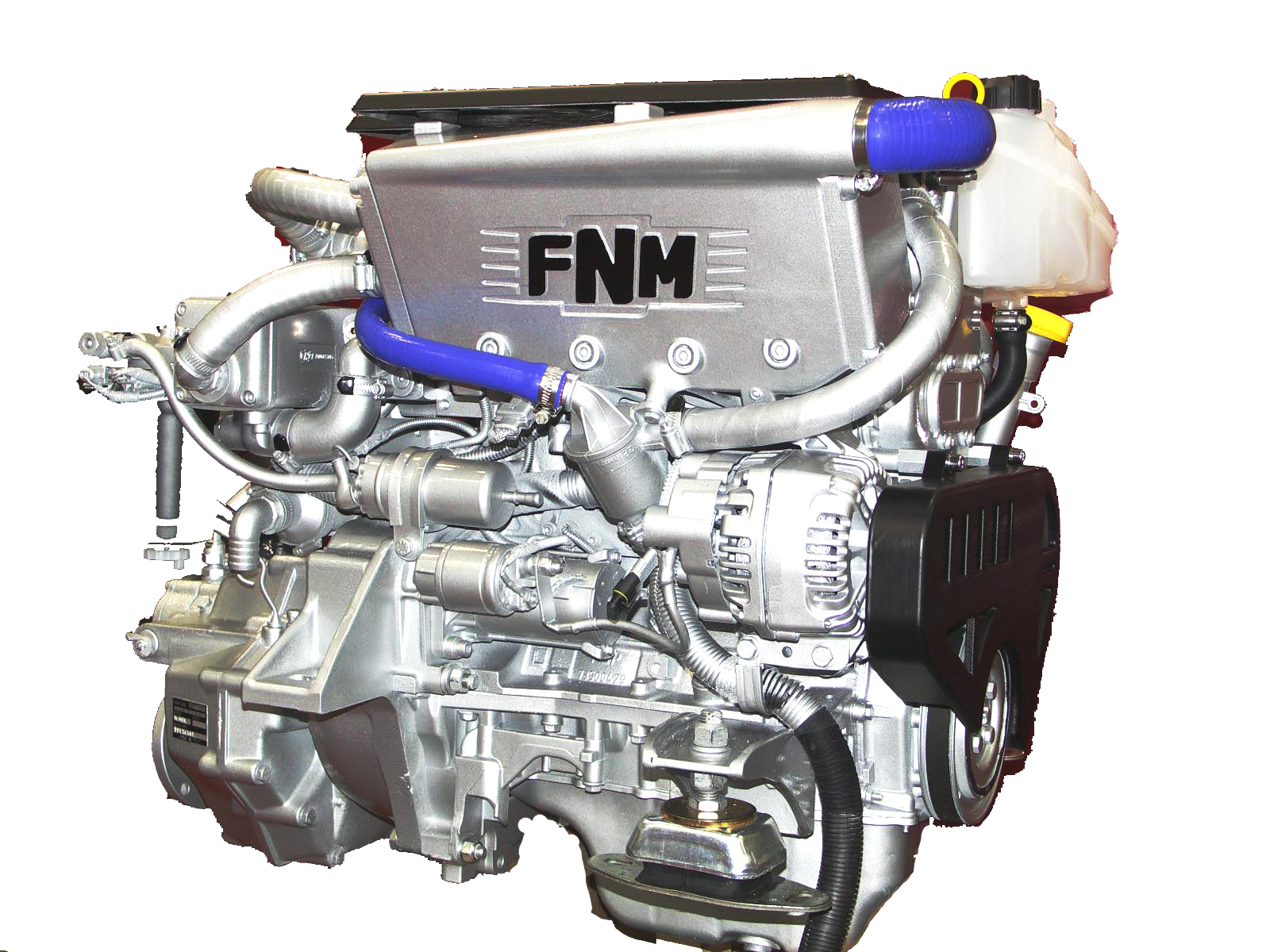

FNM HPE 80 |
|
|
|
|
|
::
Technical schedule
Download engine's technical schedule |
|
|
Download PDF
» |
|
 |
|
| |
::
Technical data |
|
| |
|
|
| |
| Configuration |
In line, 4-stroke cycle, twin camshaft, 16v |
 |
| Maximum output at crankshaft |
59 kW/80 hp at 4000 rpm |
|
| Maximum output at propeller |
52,5 kW/74 hp at 4000 rpm |
|
| Maximum torque |
157 Nm at 2200 rpm |
|
| Displacement |
1248 c.c. |
|
| Bore x stroke |
69,6 x 82 mm |
|
| Cylinders |
4, in line |
|
| Combustion system |
Direct injection Common Rail |
|
| Aspiration |
Supercharged with fixed geometry turbine |
|
| Starting system |
Electric starting 12 V – 1,3 kW |
|
| Alternator |
14 V – 75 A |
|
| Cooling system |
Double water cooling system with heat exchanger |
|
| Lubrication system |
Totally enclosed, forced lubricating system with pump |
|
| Max. mounting inclination |
10° |
|
| Dry weight without gear |
160 kg |
|
| Environmental |
Meets the EU comprehensive emissions regulation 2006 |
|
| Engine mounting |
Rubber type anti-vibration mounting |
|
|
|
|
|
|
|
| |
::
Instrument panel |
|
| |
|
|
| |
- VDO Oil pressure
- VDO Water temperature
- VDO Voltmeter
- VDO Rpm counter
- 8 meter cable
|
|
|
|
|
|
|
| |
::
Accessories |
|
| |
|
|
| |
Dotazione standard
- Gearbox
- Set of flexible mounts
- Alternator 14 V – 75 A with built-in regulator
- Starter motor 12 V – 1,3 kW
- Oil and fuel filters
- Bronze seawater pump
- Stainless steel seawater-cooled elbow
- Racor filters
- Instrument panel with 8 mt.
|
Optional
- Kit for boat internal heating
- 2 mt. auxiliary extension cable
- Flybridge instrument panel
- Kit for coupling to Mercruiser and Volvo stern drives
- Trolling valve
- 2-groove front pulley |
|
|
|
|
